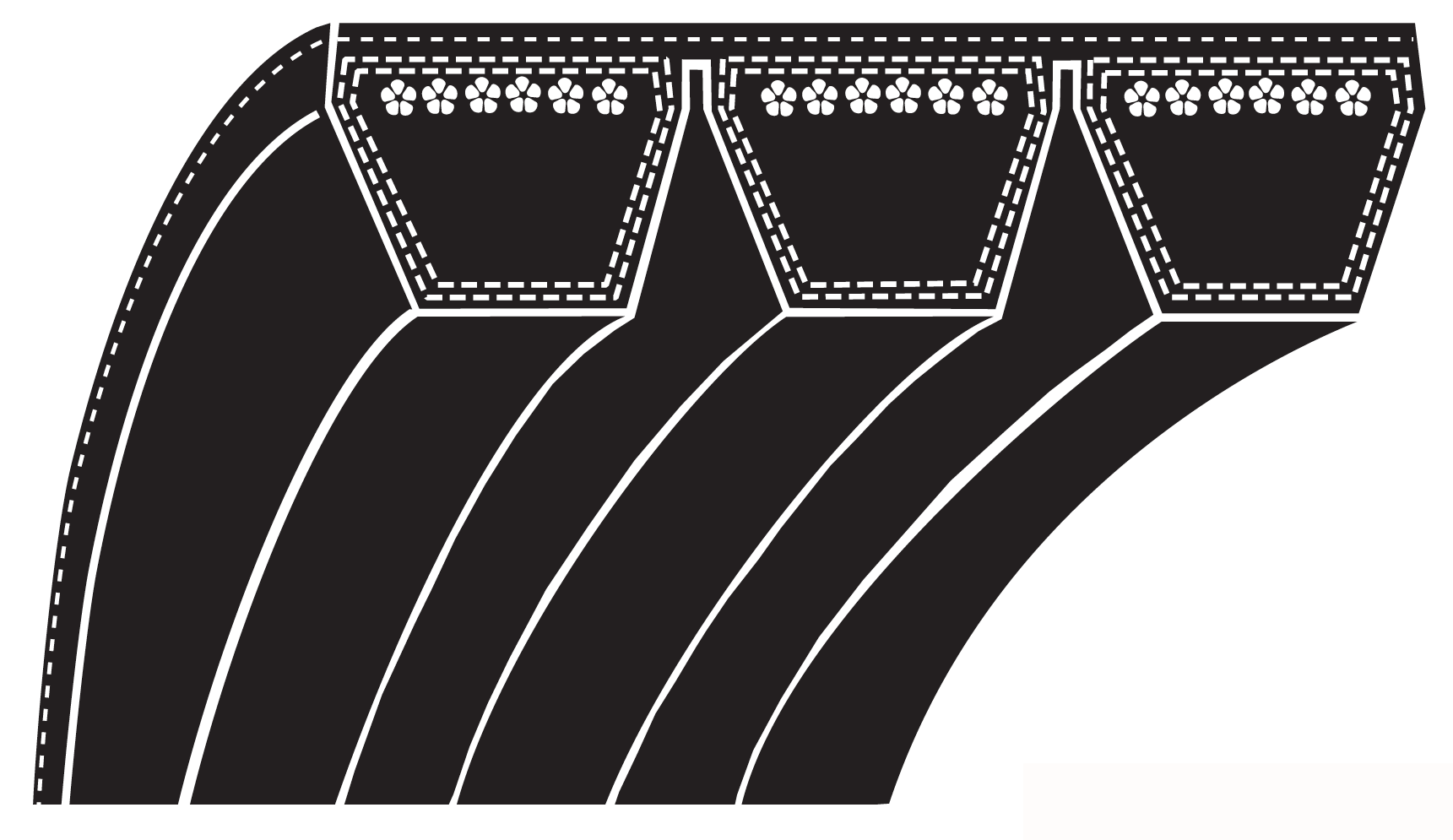

Bestorq 10/3V1120 Banded Wedge Belts

The 10/3V1120 is a banded 3V wedge v-belt from Bestorq. It has a top width of .38 inches in the band and a total top width of 4.029 inches. The belt has a thickness of .41 inches and consists of 10 bands. The approximate outside circumference of the belt is 112.0 inches.



SPECIFICATIONS:

Banded Wedge Belts	Banded 3V V-Belt
Part Number	10/3V1120
Top Width - Band(in.)	.38
Top Width - Total(in.)	4.029
Thickness (in.)	.41
Bands	10
Approximate Outside Circumference (in.)	112.0
Weight (lbs)	6.272



PRODUCT DETAILS:

The Bestorq banded, wrapped V-belts are designed to provide premium belt performance. They meet the USA RMA published ratings levels and are manufactured to meet RMA standards for length and dimensions. All A, B, C, D, 3V, 5V, and 8V belts are manufactured to run interchangeably in a matched set. The SPB, SPC, 9J, 15J, and 25J banded belts are manufactured to fit ISO standard dimension multi-groove pulleys.



This type of v-belt is commonly used in various applications, including:

• Power transmission
• Conveyor systems
• HVAC systems
• Agricultural machinery
• Manufacturing equipment
• Automotive systems
• Mining operations
• Construction machinery
• Material handling equipment
• Industrial pumps
