Gates

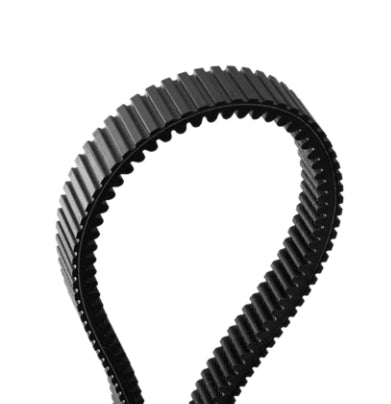

Gates G-Force Belts 34G3596
Gates G-Force Belts 34G3596
Regular price
$128.36 USD
Regular price
Sale price
$128.36 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 34G3596 |
|---|---|
| Product # | 98271107 |
| Description | 34G3596 G FORCE BELT |
| UPC | 770075625889 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .165 |
| Cord Position (mm) | 4.2 |
| Effective Length (in) | 35.96 |
| Effective Length (mm) | 943 |
| Notched | true |
| Outside Circumference (in) | 37.13 |
| Outside Circumference (mm) | 913 |
| Pitch Width (in) | 1.268 |
| Pitch Width (in) | 1.268 |
| Pitch Width (mm) | 32.2 |
| Pitch Width (mm) | 32.2 |
| Section | RVS-R |
| Top Width (in) | 1.34 |
| Top Width (mm) | 34 |
| Angle. | 32.2 |
| Thickness (in) | 0.57 |
| Thickness (mm) | 14.4 |
