Gates

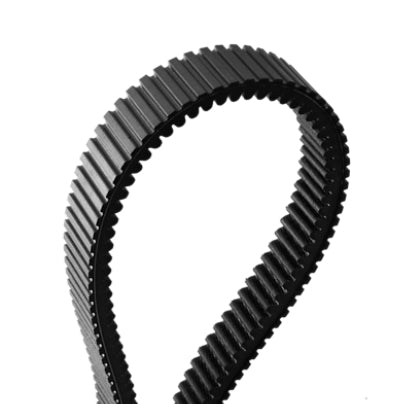

Gates G-Force C12 Belts 03C3470
Gates G-Force C12 Belts 03C3470
Regular price
$174.21 USD
Regular price
Sale price
$174.21 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 03C3470 |
|---|---|
| Product # | 98231046 |
| Description | 03C3470 G FORCE BELT |
| UPC | 770075677871 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .169 |
| Cord Position (mm) | 4.3 |
| Effective Length (in) | 34.7 |
| Effective Length (mm) | 911 |
| Notched | true |
| Outside Circumference (in) | 35.87 |
| Outside Circumference (mm) | 881.5 |
| Pitch Width (in) | .957 |
| Pitch Width (in) | .957 |
| Pitch Width (mm) | 24.3 |
| Pitch Width (mm) | 24.3 |
| Section | RVS-R |
| Top Width (in) | 1.03 |
| Top Width (mm) | 26 |
| Angle. | 24.3 |
| Thickness (in) | 0.57 |
| Thickness (mm) | 14.4 |
