Gates

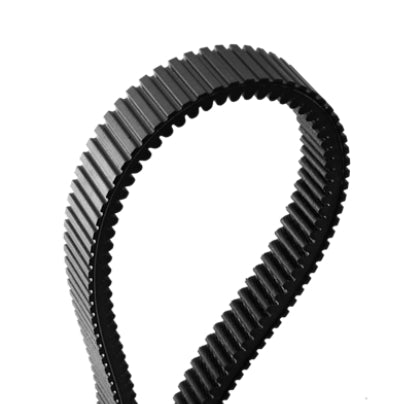

Gates G-Force C12 Belts 23C3856
Gates G-Force C12 Belts 23C3856
Regular price
$192.54 USD
Regular price
Sale price
$192.54 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 23C3856 |
|---|---|
| Product # | 98231076 |
| Description | 23C3856 G FORCE BELT |
| UPC | 770075691419 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .165 |
| Cord Position (mm) | 4.2 |
| Effective Length (in) | 38.56 |
| Effective Length (mm) | 1009 |
| Notched | true |
| Outside Circumference (in) | 39.73 |
| Outside Circumference (mm) | 979.5 |
| Pitch Width (in) | 1.161 |
| Pitch Width (in) | 1.161 |
| Pitch Width (mm) | 29.5 |
| Pitch Width (mm) | 29.5 |
| Section | RVS-R |
| Top Width (in) | 1.23 |
| Top Width (mm) | 31 |
| Angle. | 29.5 |
| Thickness (in) | 0.57 |
| Thickness (mm) | 14.4 |
