Gates

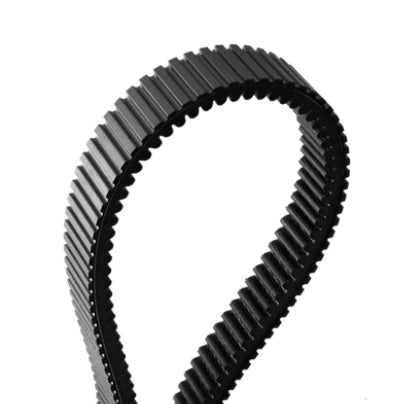

Gates G-Force C12 Belts 24C4022
Gates G-Force C12 Belts 24C4022
Regular price
$198.03 USD
Regular price
Sale price
$198.03 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 24C4022 |
|---|---|
| Product # | 98231010 |
| Description | 24C4022 G FORCE BELT |
| UPC | 770075528333 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .169 |
| Cord Position (mm) | 4.3 |
| Effective Length (in) | 40.22 |
| Effective Length (mm) | 1051 |
| Notched | true |
| Outside Circumference (in) | 41.39 |
| Outside Circumference (mm) | 1022 |
| Pitch Width (in) | 1.2 |
| Pitch Width (in) | 1.2 |
| Pitch Width (mm) | 30.5 |
| Pitch Width (mm) | 30.5 |
| Section | RVS-R |
| Top Width (in) | 1.24 |
| Top Width (mm) | 32 |
| Angle. | 30.5 |
| Thickness (in) | 0.57 |
| Thickness (mm) | 14.4 |
