Gates

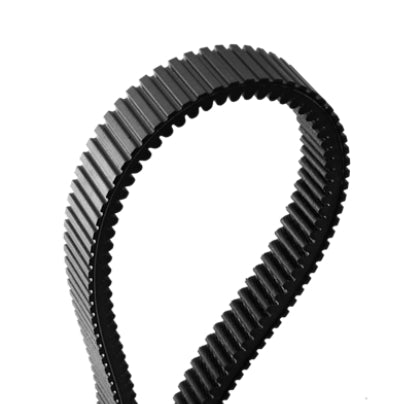

Gates G-Force C12 Belts 38C4683
Gates G-Force C12 Belts 38C4683
Regular price
$245.73 USD
Regular price
Sale price
$245.73 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 38C4683 |
|---|---|
| Product # | 98231032 |
| Description | 38C4683 G FORCE BELT |
| UPC | 770075622246 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .168 |
| Cord Position (mm) | 4.3 |
| Effective Length (in) | 46.83 |
| Effective Length (mm) | 1219 |
| Notched | true |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1189 |
| Pitch Width (in) | 1.303 |
| Pitch Width (in) | 1.303 |
| Pitch Width (mm) | 33.1 |
| Pitch Width (mm) | 33.1 |
| Section | RVS-R |
| Top Width (in) | 1.38 |
| Top Width (mm) | 35 |
| Angle. | 33.1 |
| Thickness (in) | 0.63 |
| Thickness (mm) | 15.9 |
