Gates

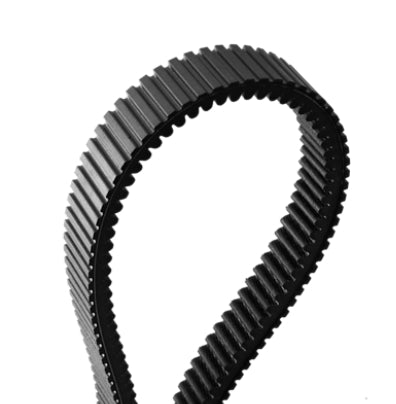

Gates G-Force C12 Belts 40C3691
Gates G-Force C12 Belts 40C3691
Regular price
$200.79 USD
Regular price
Sale price
$200.79 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 40C3691 |
|---|---|
| Product # | 98231042 |
| Description | 40C3691 G FORCE BELT |
| UPC | 770075673934 |
| Cross Section | RVS-R |
| Double Notch | true |
| Cord Position (in) | .168 |
| Cord Position (mm) | 4.3 |
| Effective Length (in) | 36.91 |
| Effective Length (mm) | 968 |
| Notched | true |
| Outside Circumference (in) | 38.08 |
| Outside Circumference (mm) | 937 |
| Pitch Width (in) | 1.323 |
| Pitch Width (in) | 1.323 |
| Pitch Width (mm) | 33.6 |
| Pitch Width (mm) | 33.6 |
| Section | RVS-R |
| Top Width (in) | 1.4 |
| Top Width (mm) | 36 |
| Angle. | 33.6 |
| Thickness (in) | 0.60 |
| Thickness (mm) | 15.2 |
