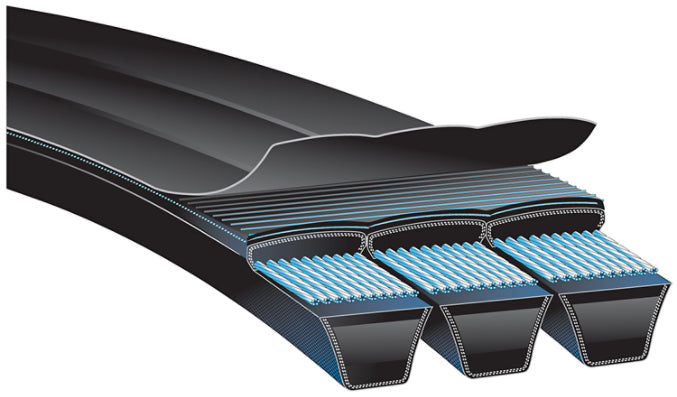

Gates Hi-Power II PowerBand V-Belts 16/B112
Gates Hi-Power II PowerBand V-Belts 16/B112
Regular price
$1,046.24 USD
Regular price
Sale price
$1,046.24 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Part # | 16/B112 |
|---|---|
| Product # | 909316112 |
| Description | 16/B112 HI-POWER II PWRBND BELT |
| UPC | 072053476132 |
| Cross Section | B |
| Effective Length (in) | 114.9 |
| Effective Length (mm) | 2918 |
| Outside Circumference (in) | 115.75 |
| Outside Circumference (mm) | 2940 |
| Section | B |
| Strand | 16 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.47 |
| Thickness (mm) | 12 |
