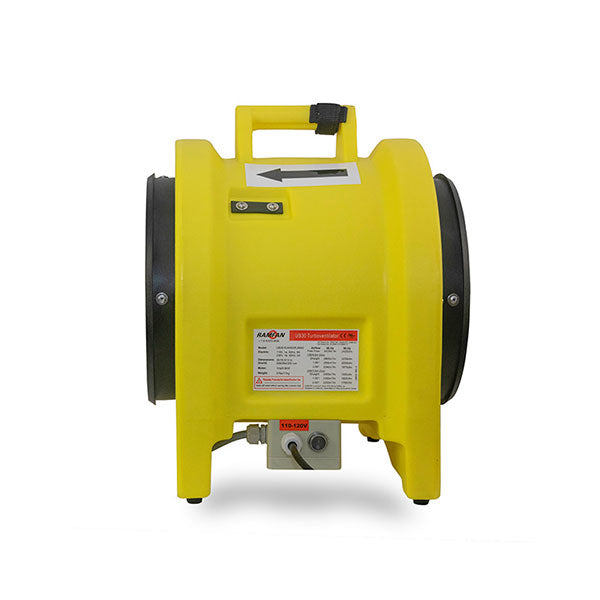

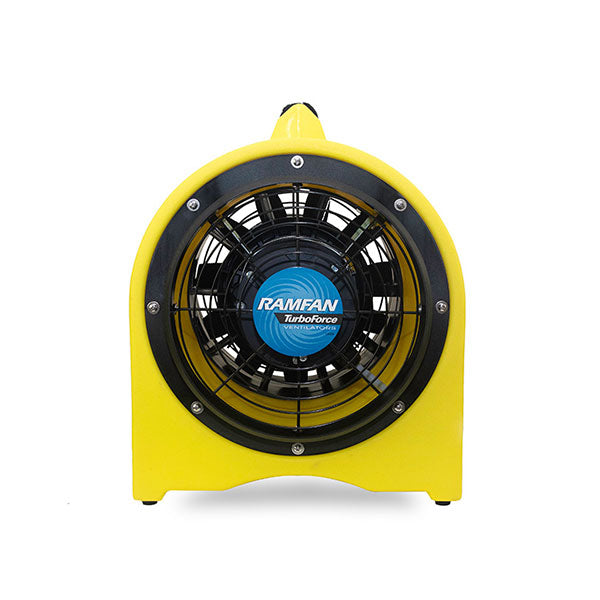

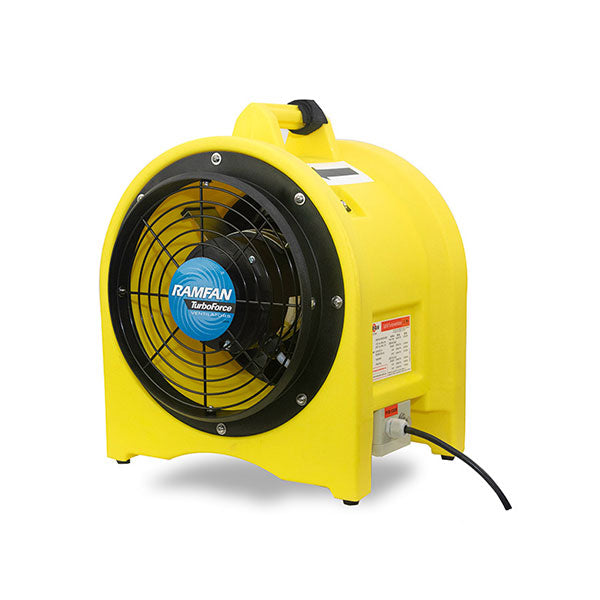

Ramfan UB30 12"/30 cm Blower/Exhauster 115V or 230V
Ramfan UB30 12"/30 cm Blower/Exhauster 115V or 230V
Regular price
$1,001.00 USD
Regular price
Sale price
$1,001.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ramfan UB30 12"/30 cm Blower/Exhauster 115V or 230V is designed for operation in larger confined spaces. The 12"/30 cm UB30 inherits its design from the UB20, scaled up for larger applications and made to produce higher airflow. It has unmatched performance for a fan its size and built with a durable housing to withstand industrial workspace environments.
Part No: EJ4002 (115 V); EJ8002 (230 V)
Specifications
| Model | UB30 (115V) | UB30 (230V) |
|---|---|---|
| Part # | EJ4002 | EJ8002 |
| IMPA Code | 591403 | 591407 |
| Motor | 1 Hp / 0.75 kW | |
| Motor Type | Thermally Protected Motor | |
| Electric | 115V, 50/60Hz, 1ø | 230V, 50/60Hz, 1ø |
| Amps (Start/Run) | 33A / 8A | 17A / 5A |
| Cable Lengths | 15'/4.6m, 16AWG/1.5mm² | |
| Plug Types | 15A NEMA 5-15P | 16A Schuko |
| Noise | 95 dB @ 3' (1 m) | |
| Weight | 37 lbs / 17 kg | |
| Dimensions (h/w/d) | 20 x 15.5 x 12 in / 51 x 39 x 31 cm | |
| Duct Adapters | 2 |
